Hi Scott,
I obtained a free trial of RX web service tool. And the web service I
am trying to consume works on that tool, but not on the HTTPAPI.
So what I thought was, if I can find the difference between the two and
incorporated it in the HTTPAPI, I might be able to get the HTTPAPI to
work.
In the RX log it shows what it passed to the server that created the
service and the response. Here below is the log of the post.
It has some additional headers. Now that you explained what they mean,
I believe they should not make any difference but I thought I would try
to add it to the HTPPAPI.
POST /client_smart/api HTTP/1.1
User-Agent: Apache-HttpClient/4.1.1 (java 1.5)
Host: 172.16.255.7:5001
Accept: */*
Connection: Keep-Alive
Content-Type: text/xml; charset=utf-8
This is from the RX tool.
SOAPAction: "/client_smart/api/get_client"
Content-Length: 398
HTTP/1.1 200 OK
Connection: close
Date: Fri, 26 Apr 2013 13:15:39 GMT
I talked to the vendor that created the service and they were able to
capture what we send to them. The first log shows how a successful call
looks like and the second is the one is the one I sent using HTPPAPI
and it failed. I am also including the log from the HTPPAPI and my
code. I think its something on their server, but what is a mystery is
why some tools work and others don't.
Thanks for your help.

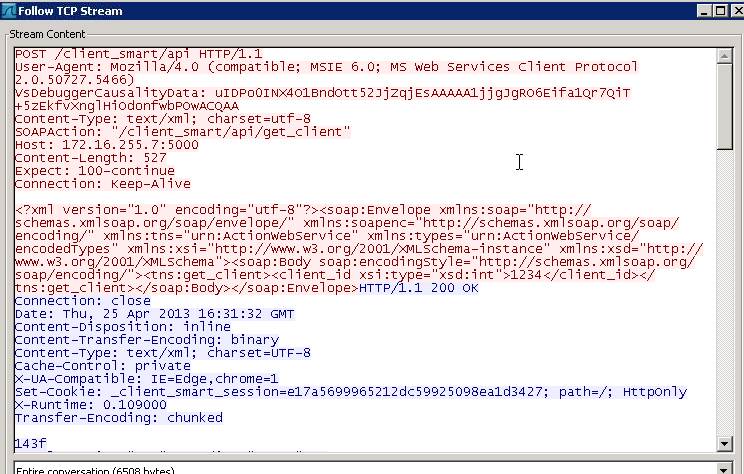

Here the TCP Stream on a successful call. It sends a POST request.
cid:image002.jpg@01CE41B3.22275EC0

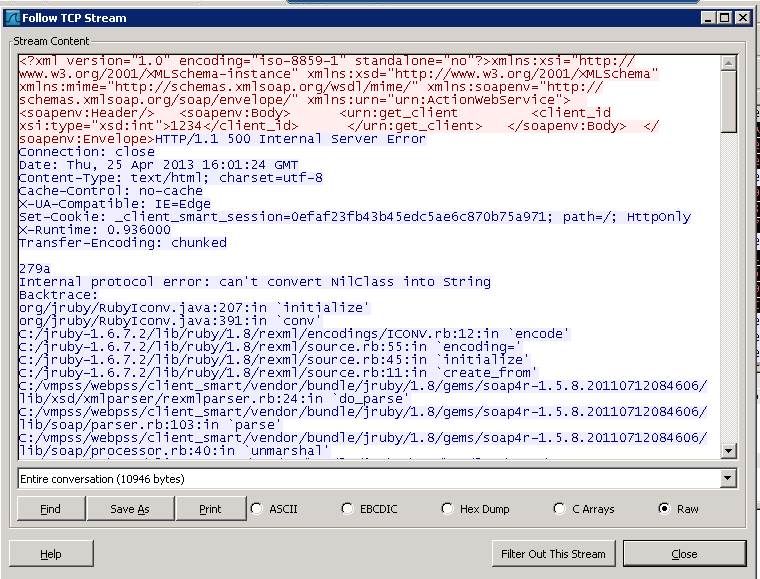

Here's the TCP Stream on Mauricio's failing call. Note no POST
request.
cid:image006.jpg@01CE41B3.22275EC0
HTTPAPI Ver 1.24 released 2012-01-23
OS/400 Ver V7R1M0
New iconv() objects set, PostRem=1208. PostLoc=0. ProtRem=819. ProtLoc=0
http_persist_open(): entered
http_long_ParseURL(): entered
DNS resolver retrans: 2
DNS resolver retry : 2
DNS resolver options: x'00000136'
DNS default domain: VONMAUR.COM
DNS server found: 64.22.192.4
DNS server found: 64.22.192.3
http_persist_post(): entered
http_persist_req(POST) entered.
http_long_ParseURL(): entered
do_oper(POST): entered
There are 0 cookies in the cache
POST /client_smart/api HTTP/1.1
Host: 172.16.255.7:5001
User-Agent: http-api/1.24
Content-Type: text/xml; charset=utf-8
SOAPAction: /client_smart/api/get_client
Content-Length: 443
senddoc(): entered
<?xml version="1.0" encoding="iso-8859-1" standalone="no"?> <soapenv:Envelope xm
recvresp(): entered
HTTP/1.1 500 Internal Server Error
Connection: close
Date: Fri, 26 Apr 2013 14:18:08 GMT
Content-Type: text/html
Content-Length: 15942
X-Runtime: 0.047000
SetError() #13: HTTP/1.1 500 Internal Server Error
recvresp(): end with 500
recvdoc parms: identity 15942
header_load_cookies() entered
recvdoc(): entered
SetError() #0:
SetError() #0:
<html xmlns="http://www.w3.org/1999/xhtml";>
<head>
<title>Action Controller: Exception caught</title>
<style>
body { background-color: #fff; color: #333; }
body, p, ol, ul, td {
font-family: verdana, arial, helvetica, sans-serif;
font-size: 13px;
line-height: 18px;
}
pre {
background-color: #eee;
padding: 10px;
font-size: 11px;
}
a { color: #000; }
a:visited { color: #666; }
a:hover { color: #fff; background-color:#000; }
</style>
</head>
<body>
<h1>
TypeError
</h1>
<pre>can't convert NilClass into String</pre>
<p><code>Rails.root: C:/vmpss/webpss/client_smart</code></p> Columns . . . : 6 76 Edit MDIAZ/QRPGLESRC
SEU==> GETCLTID
FMT H HKeywords++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
*************** Beginning of data *************************************
0000.01 H DFTACTGRP(*NO) BNDDIR('HTTPAPI':'QC2LE')
0002.00 *=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=
0003.00 *
0004.00 * D E V E L O P E D F O R V O N M A U R
0005.00 *
0006.00 * Program...... Get Client ID
0007.00 * Description.. Call the web service that get the Client ID.
0008.00 *
0009.00 * Programmer... Mauricio Diaz-Lapham
0010.00 *
0011.00 * Objective.... Create the logic that will call the web service
0012.00 *
0014.00 *=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=
0015.00 * Modifications:
0016.00 * --------------
0017.00 * PROJ# DATE PROGRAMMER NOTES
0018.00 * ----- -------- ---------- -------------------------------------
0039.00 *-------------------------------------------------------------------*
0039.01 *=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*
0039.02 * Usage:
0039.03 * ------
0039.04 *
0083.01 *=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=
0083.02 c* External Procedures
0083.03 *=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=
0083.17
0083.18 d Setup pr
0083.19
0083.20 d WebService pr 10i 0
0083.25
0083.27 D Incoming PR
0083.28 d @ClientID 9000A
0083.29 D depth 10I 0 value
0083.30 D name 1024A varying const
0083.31 D path 24576A varying const
0083.32 D value 65535A varying const
0083.33 D attrs * dim(32767)
0083.34 D const options(*varsize)
0083.35
0083.36 d GETCLTID pr ExtPgm('GETCLTID')
0083.37 d ClientID 4a
0083.38
0083.39 d GETCLTID pi
0083.40 d ClientID 4a
0083.41 *=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=
0083.42 c*====================================================================
0083.43 c* Copybooks
0083.44 c*====================================================================
0083.45
0083.46 /copy config_h
083.47 /copy httpapi_h
0083.48
0083.49 *=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=
0083.50 * Indicators:
0083.51 * ----------
0083.52 *
0083.53 *=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=
0106.03 c* Stand Alone Fields
0106.04 d ErrMsg s 1024a varying
0106.06 d Soap s 32767a varying
0106.07 d @ClientID s 9000a varying
0106.09 d ReturnCode s 10i 0
0106.11
0106.12 dVariableRecords...
0106.13 d ds Qualified
0106.14 d Number 10i 0
0106.16 c*====================================================================
0106.17 c* Main
0106.18 c*====================================================================
0106.19 /free
0106.20
0106.21 Setup();
0106.92
0106.93 /end-free
0106.94
0106.95 *=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=
0107.00 **********************************************************************
0108.00 * Main processing - Call the Webservice to update CMA
0111.00 **********************************************************************
0112.00
0113.00 /Free
0144.09
0144.10 // Call the web service that will update the client smart file.
0144.11 ReturnCode = WebService();
0144.12 If ReturnCode <> 1;
0144.13 ErrMsg = http_error();
0144.14 ReturnCode = -1;
0144.15 Else;
0144.16 ErrMsg = 'HTTP/1.1 200 OK';
0144.23 EndIf;
0144.27
0145.00 *inLr = *on;
0146.00 Return;
0147.00
0147.01 /end-free
0147.02 c*====================================================================
0147.03 c* Setup();
0147.04 c*
0147.05 c* General setup.
0147.06 c*====================================================================
0147.08 p Setup b
0147.09 /free
0147.10
0147.11 VariableRecords.Number = 4; // Number of keys.
0147.12
0147.13 // Turn HTTP debug on or off
0147.14 http_debug(*ON);
0147.19
0147.20 // Set the correct CCSID.
0147.21 http_setCCSIDs(1208:0);
0147.22
0147.23 // Strip off back end CRLFs on the returned XMLs.
0147.24 http_XmlStripCRLF(*ON);
0147.25
0147.26 /end-free
0147.27 p Setup e
0410.00
0411.00 c*====================================================================
0412.00 c* WebService(); Call The Web Service.
0413.00 c*====================================================================
0414.00
0415.00 p WebService b
0416.00 d WebService pi 10i 0
0417.00 /free
0606.17
0606.19 Soap='<?xml version="1.0" encoding="iso-8859-1" standalone="no"?> '
0606.20 +'<soapenv:Envelope '
0606.22 +'xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"; '
0606.23 +'xmlns:xsd="http://www.w3.org/2001/XMLSchema"; '
0606.25 +'xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"; '
0606.26 +'xmlns:urn="urn:ActionWebService">'
0606.27 +' <soapenv:Header/>'
0606.28 +' <soapenv:Body>'
0606.29 +' <urn:get_client '
0606.31 +' <client_id xsi:type="xsd:int">'+ClientID+'</client_id> '
0606.32 +' </urn:get_client> '
0606.33 +' </soapenv:Body> '
0606.52 +' </soapenv:Envelope>';
0607.02
0607.03 //Consume the web service
0610.02 ReturnCode = http_url_post_xml(
0610.03 'http://172.16.255.7:5001/client_smart/api'
0610.06 : %addr(SOAP) + 2
0610.07 : %len(SOAP)
0610.08 : *NULL
0610.09 : %paddr(Incoming)
0610.10 : %addr(@ClientID)
0610.11 : HTTP_TIMEOUT
0610.12 : HTTP_USERAGENT
0610.13 : 'text/xml; charset=utf-8'
0610.15 : '/client_smart/api/get_client');
0610.16
0610.17 return ReturnCode;
0610.18
0611.00 /end-free
0612.00 p WebService e
0613.00 c*====================================================================
0614.00 c* Incoming1();
0615.00 c* Parse the XML coming in to see what the client ID we received is.
0616.00 c*====================================================================
0617.00
0618.00 p Incoming B
0620.00 d Incoming PI
0621.00 d @ClientID 9000A
0622.00 d depth 10i 0 value
0623.00 d name 1024a varying const
0624.00 d path 24576a varying const
0625.00 d value 65535a varying const
0626.00 d attrs * dim(32767)
0627.00 d const options(*varsize)
0627.01
0627.02 D atof PR 8F extproc('atof')
0627.03 D string * value options(*string)
0628.00 /free
0629.00
0630.00 if (name = 'get_Client');
0631.00 @ClientID = value;
0632.00 endif;
0633.00
0634.00 /end-free
0635.00 p Incoming E
****************** End of data ****************************************
